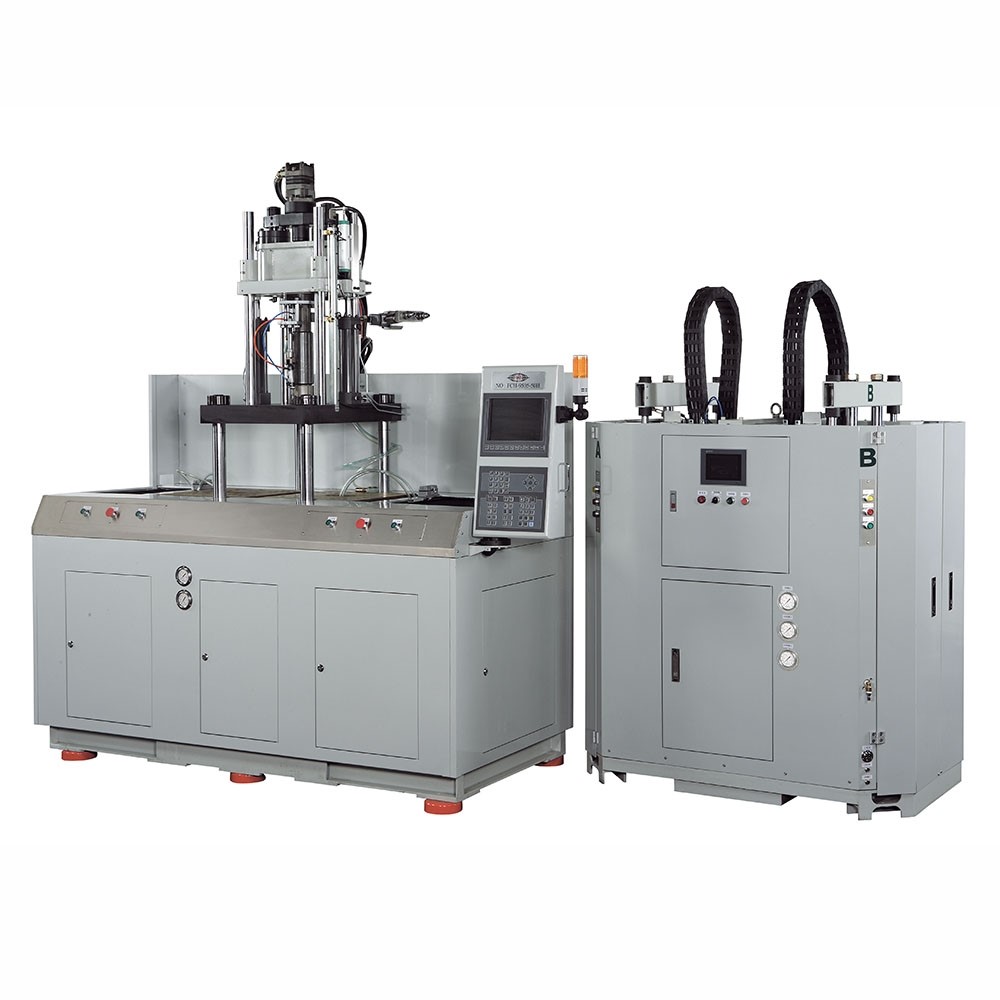

VA立式液態矽膠射出成型機

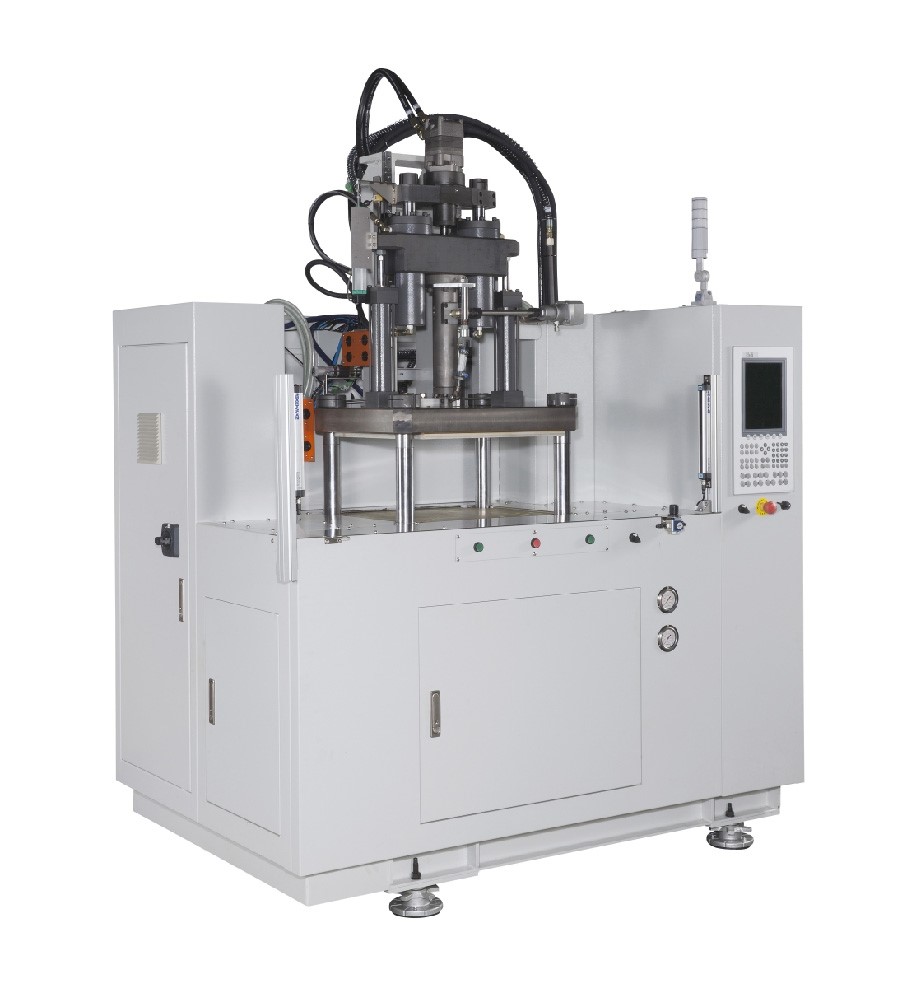

VA Series LSR Vertical Injection Moulding Equipment
VA Innovation Series
VA 20-50 Series
Double Shuttle Table Injection Moulding Machine
VA矽膠射出成型系統設備規格說明:
VA series LSR Injection Moulding Equipment Specification
|
射出單元: Injection Unit |
FCH-20LSR |
FCH-50LSR |
||||
|
理論射出容量Theoretical injecting vol. |
30 |
|
|
|
107 |
|
|
實際射出重量Actual injecting cap. |
23 |
|
|
|
85 |
|
|
最高射出壓力Max. injecting pressure |
1750 |
1439 |
1178 |
1798 |
1439 |
1178 |
|
射出能力Injecting capacity |
79 |
126 |
154 |
101 |
126 |
154 |
|
螺桿直徑Screw dia. |
18 |
22 |
28 |
28 |
32 |
38 |
|
長徑比 L/D ratio |
22.5 |
20 |
19 |
22 |
20 |
19 |
|
最高迴轉數/最大扭矩Max. rpm/Max. torque |
260/35 |
260/35 |
||||
|
射出行程 Injecting stroke |
120 |
120 |
||||
|
射座行程 Injecting post stroke |
190 |
190 |
||||
|
噴嘴封閉力 Injecting nozzle closed force |
2.77 |
2.77 |
||||
|
模具Mold |
20 |
20 |
||||
|
鎖模單元: Moulding Locking Unit |
|
|
||||
|
鎖模力 Moulding locking force |
20 |
50 |
||||
|
最大開模行程 Max. dayilght |
200 |
200 |
||||
|
模板全開距離 Full opening of moulding |
425 |
425 |
||||
|
容積厚度 (最小 - 最大) Moulding permissible tks.(Min-Max.) |
225 - 425 |
225 - 550 |
||||
|
模板尺寸 (水平*垂直) Moulding size ( H*V) |
450*500 |
500*600 |
||||
|
柱內尺寸 (水平*垂直) Inner column size (H*V) |
350*420 |
420*420 |
||||
|
頂出行程 Plunging strolze |
170 |
170 |
||||
|
頂出力 Plunging force |
1.7 |
1.7 |
||||
|
一般說明: General Description |
|
|
||||
|
油壓液泵馬達 Hyd. Pump motor |
5(4.3) |
5(4.3) |
||||
|
油槽容積 Hyd. oil tunnel |
90 |
90 |
||||
|
最大系統壓力 Max. system pressure |
140 |
140 |
||||
|
機械淨重 Machine wt. |
3.6 |
3.8 |
||||
|
機械尺寸 Machine size |
1.8*1.3*2.8 |
2.2*1.6*2.8 |
||||
